Demo Axis Mini

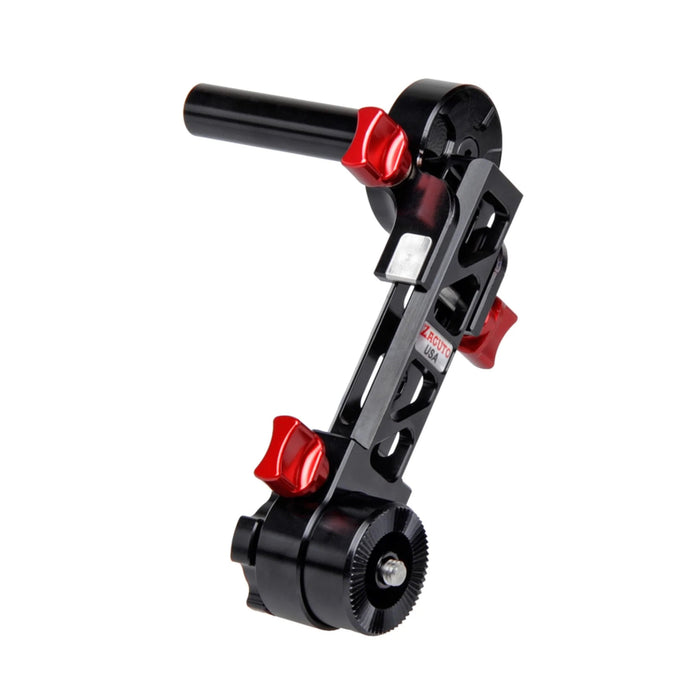

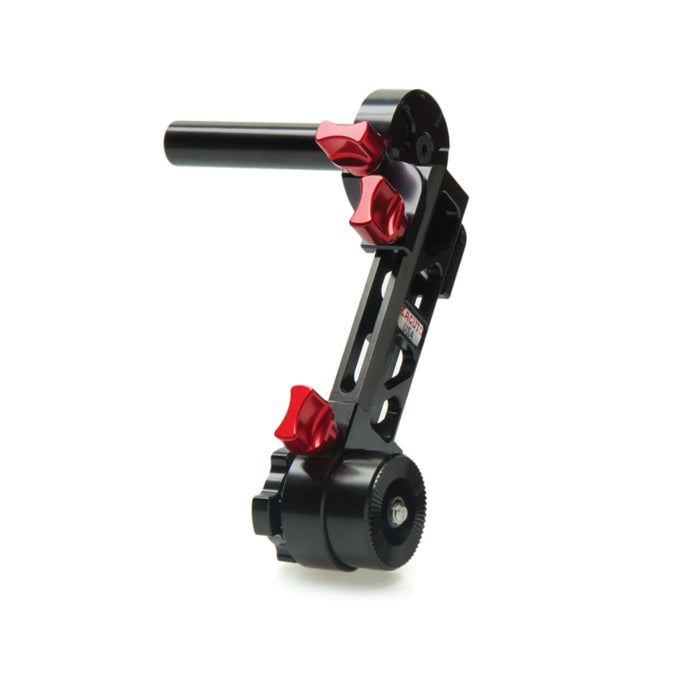

The Axis Mini is the most adjustable ENG style mount for rosette mounted EVFs, giving you full 360º motion with four adjustment points. Designed to attach to the top of your camera set up, it leaves plenty of room at the lens for focusing and will work with the widest of lenses. It can easily be adjusted with one hand while the rig is on your shoulder. The Axis Mini has extensive articulation for use with a variety of cameras, both shoulder mounted in a Next Generation Recoil or in tripod operating position. It is very small and quick to install and remove.

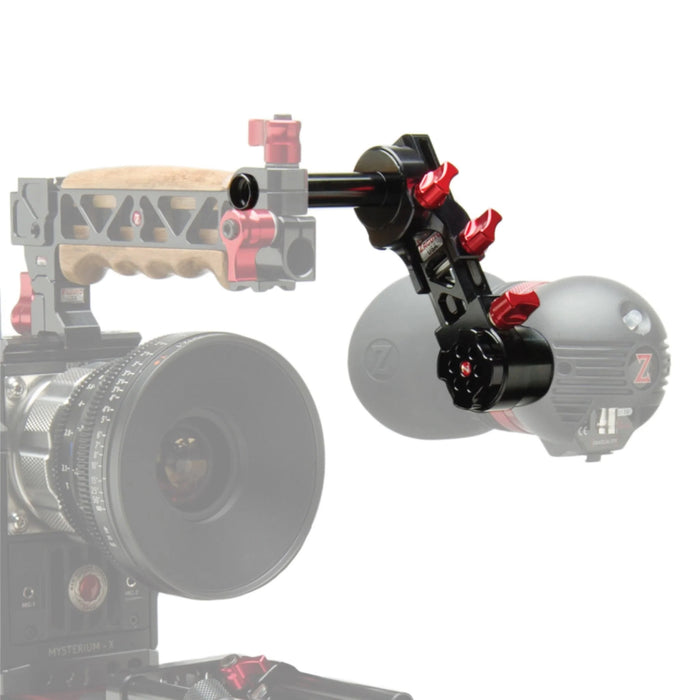

The Axis Mini attaches to your rig via a required 15mm rod port at the top of a kit positioned perpendicular to your camera lens, see recommended accessories. Slide the Axis Mini into the 15mm rod port and clamp into place. The Axis Mini attaches to the Gratical HD via a secure 1/4" 20 rosette mount. EVF's with a 1/4" 20 screw mount require the Quad Rail for use with the Axis Mini.

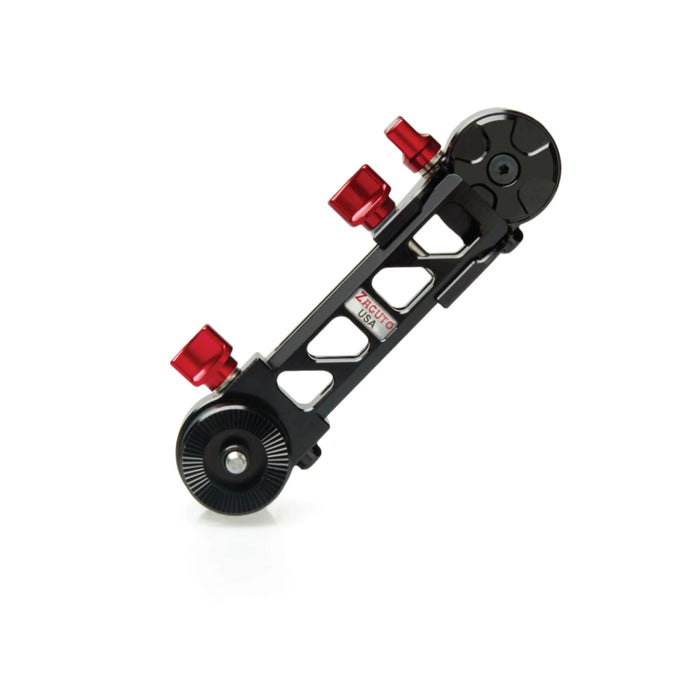

The Axis Mini has three red tension levers that are controlled independently with 360 degree motion. Release all three levers to completely reposition the mount or release just one to make single segment adjustments. You can dial in the exact amount of tension needed at each lever to adjust on the fly. Just grab and move.
If you are left eye shooter an additional extension is required
