Canon C200 Z-Finder

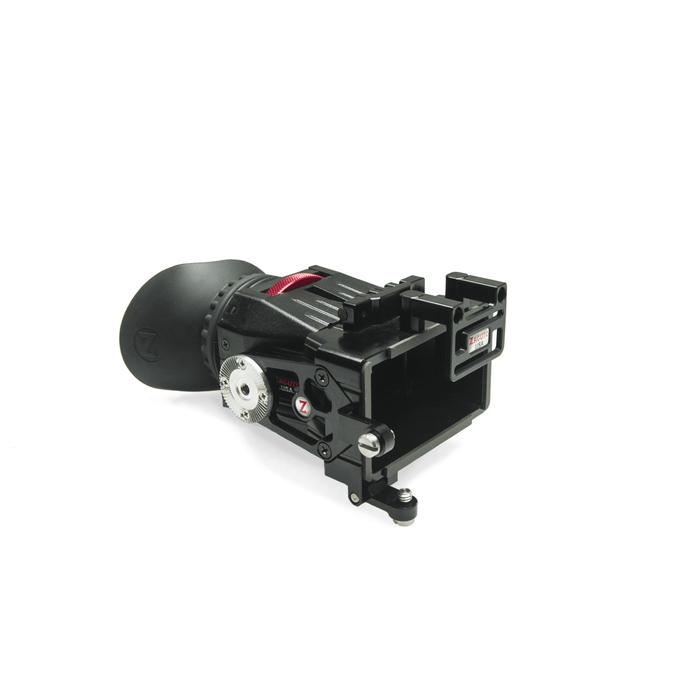

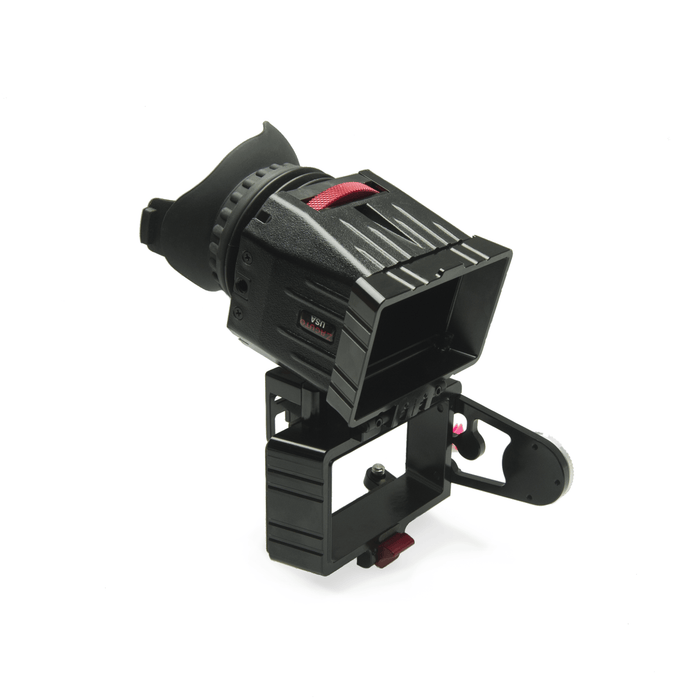

The Canon C200 Z-Finder is an optical viewfinder, specifically designed to attach to the Canon LM-V1 4" LCD Monitor compatible with the Canon C200 camera. The Z-Finder will magnify the LCD screen by 1.8x and has a diopter wheel for specific focus tuning. If you need extra focal points you can use the included Z-Finder Extender Frames. These are semi-permanent stackable frames that attach to the body of the Z-Finder and extend the Z-Finder glass further away from the LCD screen for people who are farsighted. The diopter range with the included lens and extender frames is -2.5 to 0. If you need more adjustment than the Extender Frames provide, you can purchase diopters for further diopter adjustment. The interchangeable anti-fog diopters, -1, +1, +2, +3 and +4, correct the focus to your vision for perfect clarity.
The Z-Finder cuts out any extraneous light and offers an initial point of stability by pressing your eye against the large eyecup. An aluminum sun mask is built the Z-Finder to protect your LCD screen from sunlight. The Z-Finder is mounted on a hinge so it can quickly flip up or down.

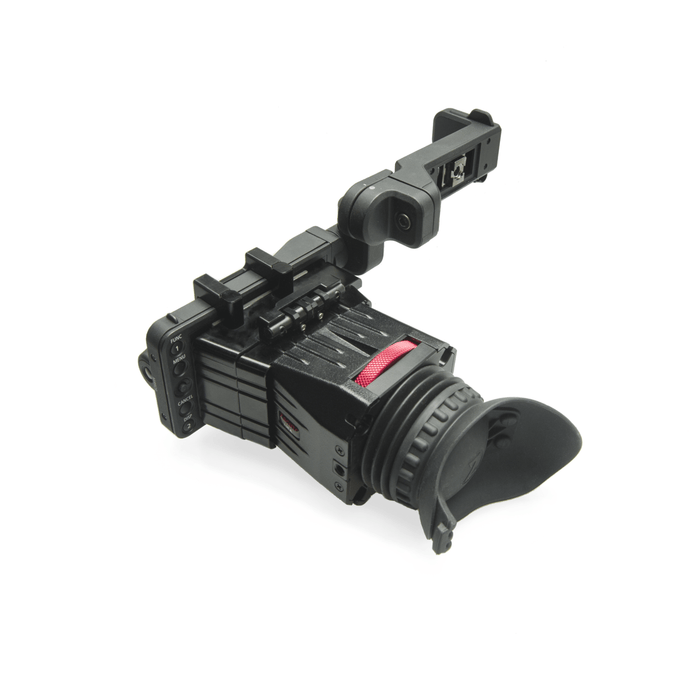

The C200 Z-Finder by using a foam padded sleeve mounting frame that slides over the LCD screen of the LCD monitor. The C200 Z-Finder uses the Canon LA-V1 LCD Attachment Unit for EOS C200 and the included Zacuto Friction Mount to mount the Z-Finder to your camera. This option is available out of the box.
If you’d like to use a more robust, flexible mount, you can use our Axis Mini, EVF mount with a custom rosette piece to mount it.
C200 loupe with 1.8x magnification and diopter wheel

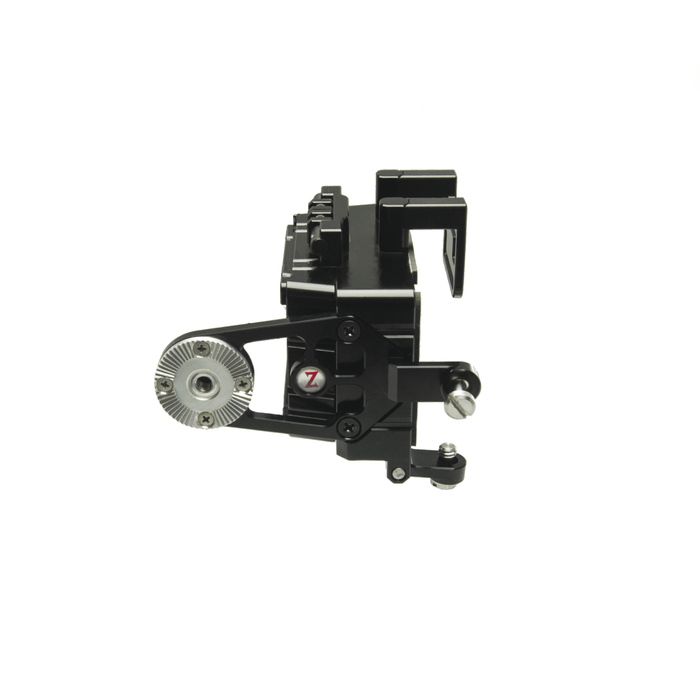

C200 Friction Mount for stability when using the Canon LCD attachment unit
Two (2) Extender Frames

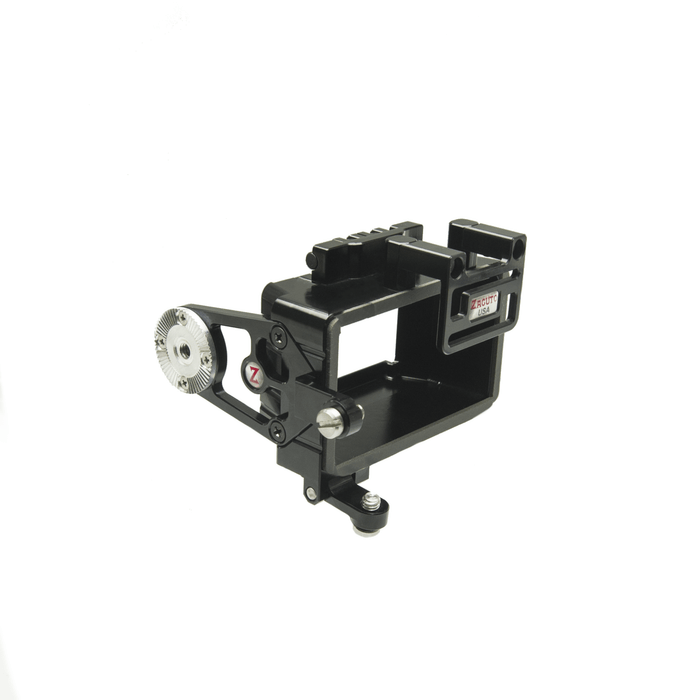

C200 padded sleeve mounting frame
Lens Cap, Sun Mask, and protective boot
Z-Finder Dust Cover
One installed and one additional Anti-Fog disc. This also acts as a lens protector and is expendable. More can be purchased here.
