Kameleon Pro EVF for RED Raptor

Original price $2,100.00 - Original price $2,100.00
Original price
$2,100.00
$2,100.00 - $2,100.00
Current price $2,100.00
SKU Z-KEVF-R

 Please allow up 2-3 weeks for shipping.

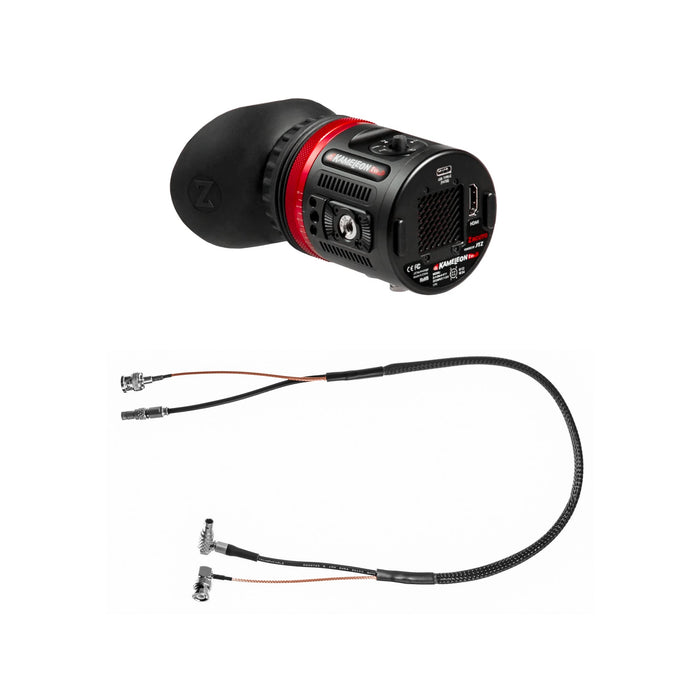

The Kameleon PRO EVF for RED Raptor includes the Kameleon EVF Pro with 24” combined 2 pin LEMO to 4 pin LEMO and SDI cable to easily power your EVF.

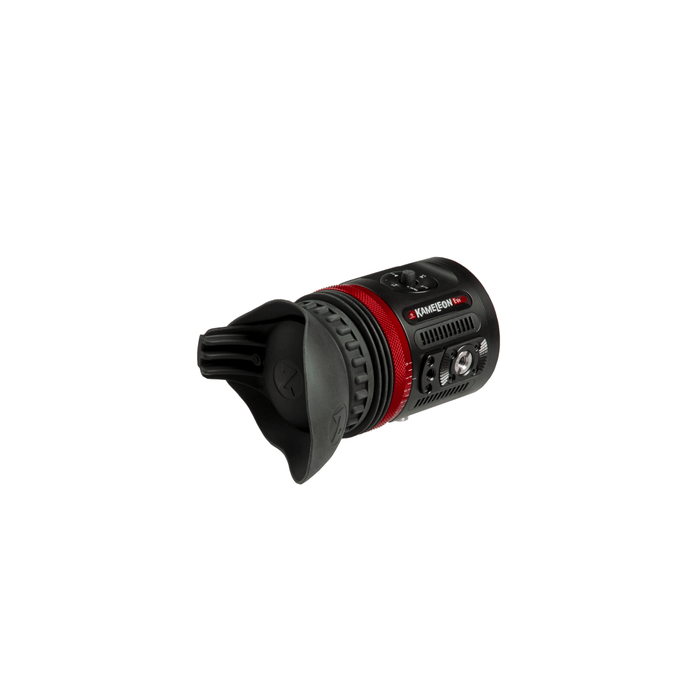

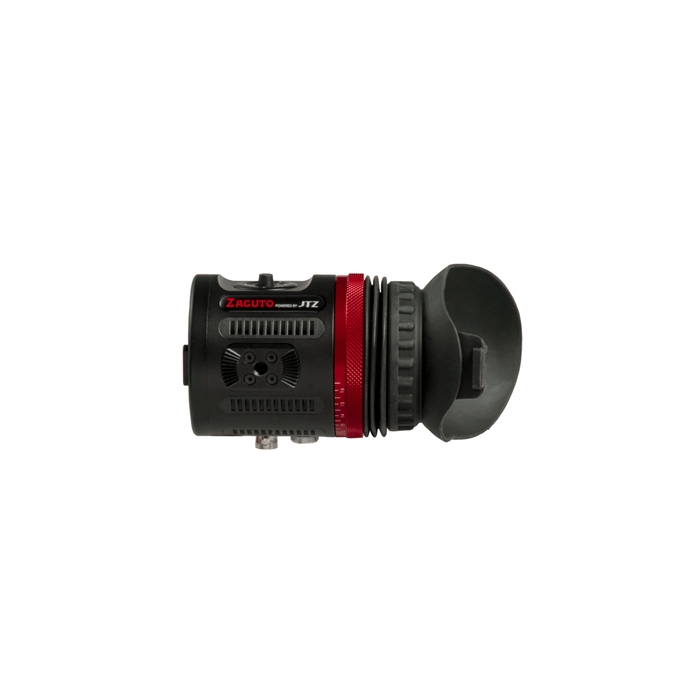

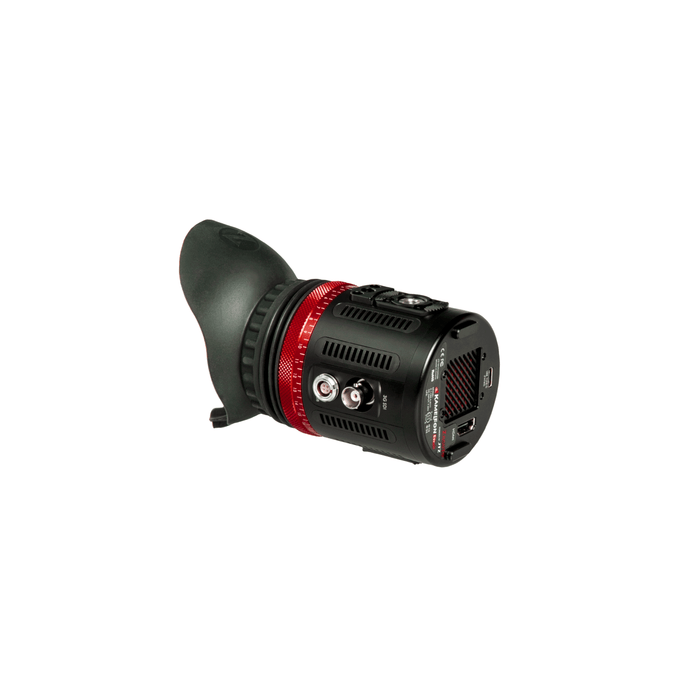

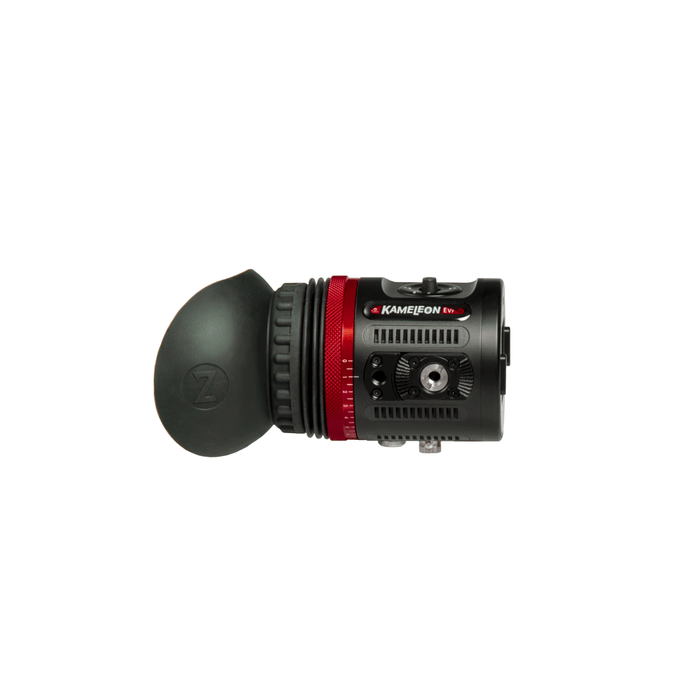

The Kameleon Pro EVF, ‘powered by JTZ’, offers all the excellent features of a professional EVF including Waveform, Vectorscope, and a new display interface. With this EVF, we have an EVF for every shooting style. The Kameleon has a 4 pin Lemo power jack and a single SDI and HDMI input.

Like all Zacuto EVFs, It features a built-in -1 to +4 diopter range and Zacuto’s patented essential anti-fog coating formula. It never fogs in humidity or freezing temperatures. An auto-closing eyecup door helps prevent your display from getting burned by the sun.

***

Please note the Raptor does not come with a 2 pin LEMO connector and you will need a Raptor Tactical Top Plate or other accessory which provides this connector. Otherwise, we recommend using the 4 pin LEMO to d-tap Cable

***

Tech Specifications

Dimensions: 4.9”x 2.75” x 2.83”
Weight: 15 oz

Micro-OLED Display:

Dimension: 0.71” diagonal
Contrast: 10,000:1
Color depth: 24-bit RBG
6.5 million pixels for a hugely expanded
Pixel Info - 3103 PPI

Power:
Power input: 7-20V
Power input port: 4 LEMO 0B
Power consumption: 5W

Connections:

HDMI x 1
SDI x 1
USB-C x1 for LUT imports & Firmware updates

HDMI input: 4K DCI, 4K, 1080p, 1080i, 720p

SDI input: 3G SDI, 1080p, 1080i, 720p

Physical Features:

Joystick menu/function button
Adjustable diopter ring
Drop in diopters for additional correction (+1, +2, +3, +4)
Auto Closing Eyecup
2-step anti-fog shields
Arri Rosette on both sides
Cooling fan

Software Features:

Custom Scaling
Frame lines
Calibration Settings
Center marker/crosshair
Anamorphic
4:1 Zoom
Image Flip
False
Red Line Peaking
Edge Enhancement Levels 1-3 Peaking
Freeze
Zebras
Waveform
Vectorscope
Histogram
Audiometers
4 programmable hotkeys
3D LUT import
SMPTE Color Bars

Q: Can the Kameleon be powered by the USB port?

No, this is not intended to be used for power and can cause harm to the viewfinder. Incorrect use is not covered under warranty.


Recommended Accessories:

Axis Mini EVF Mount
Axis Micro
